Description

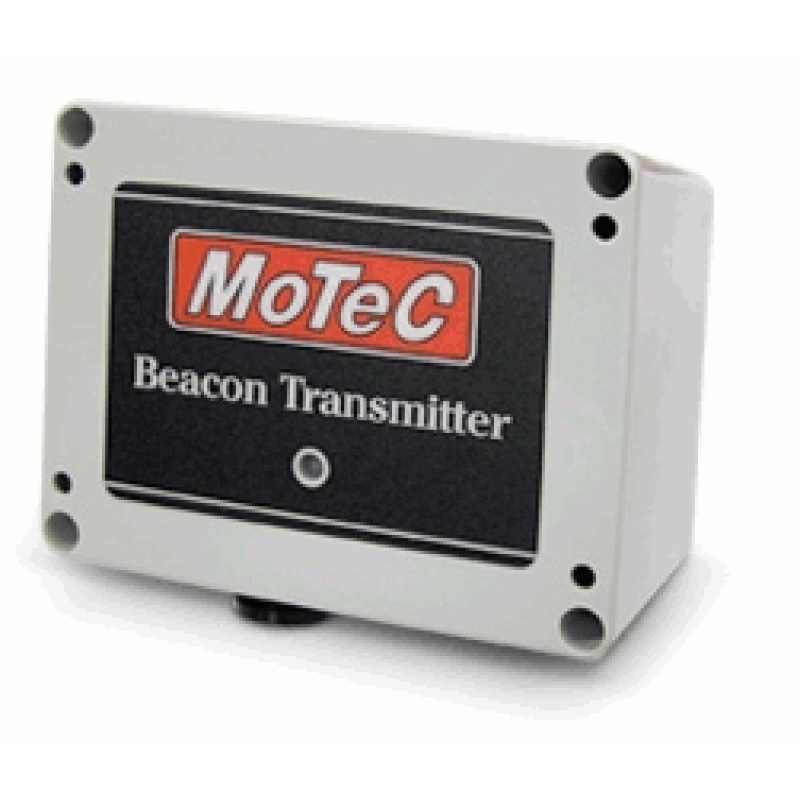

The Beacon Transmitter (BTX) is the track side mounted part of the lap timing system. The narrow infrared beam emitted by the BTX should be aimed parallel to the road and at the same height above the road as the receiver in the vehicle. The transmitter mounting system should therefore be capable of height and tilt adjustment. The spacing between adjacent transmitters must be a least 6 meters.

Compatible with:

  • BR2

Outputs

  • Coded infrared beam
    • Range up to 40 meter when used with BR2
  • Status indicator
    • LED in three colors indicating:
      • Power OK
      • Low battery
      • Fault or very low battery

Communications

  • External via a 12 volt rechargeable battery (10 Ah capacity recommended)
  • Power consumption 70 mA typical

Physical

  • Case size – 90 x 80 x 115 mm
  • Weight 260 gram
