Description

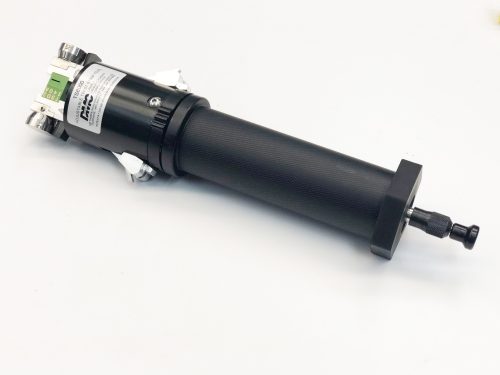

Twist Strip Kit with TSK8000 & All (10) 3 Conductor Die Sets (Cable diameter range from 0.081” to 0.180”)

Features:
Rugged lightweight construction
Adjustable blade depth settings
Micrometer style blade adjustment knobs.
Removable and replaceable die sets
Die Sets have a contoured cable track
Adjustable cable strip length
Locking tool arms
Locking head
Free rotating core
Positive die closure

Tool Specifications:
The TSK8000 accommodates a variety of multi-conductor cable having diameters from 0.0625 inches to 0.180 inches
Strips the outer jacket of shielded twisted multi-conductor, and round cable. End stripping or window stripping of cable as needed

Interchangeable stripping dies (with cable track and carbide blade set)
Adjustable blade depth settings
Tool Weight:  .81 lbs
Shipping Weight:  6 lbs (includes entire tool and accessories in foam lined case)
Die Arm Lever Force:  4.4 lbs
Die Arm Lever Length:  1 inches
Tool Dimensions:  1.75 inches wide, 9.75 inches tall
Cable Max OD: < 0.180 inches / 4.75 mm
Cable Min OD: > 0.0625 incehs / 1.59 mm

Tool Kit includes:
TSD3090 – TSK8000 Universal Die Set for .081″ – .090″ Triple Cables, Qty. 1
TSD3100 – TSK8000 Universal Die Set for .091″ – .100″ Triple Cables, Qty. 1
TSD3110 – TSK8000 Universal Die Set for .101″ – .110″ Triple Cables, Qty. 1
TSD3120 – TSK8000 Universal Die Set for .111″ – .120″ Triple Cables, Qty. 1
TSD3130 – TSK8000 Universal Die Set for .121″ – .130″ Triple Cables, Qty. 1
TSD3140 – TSK8000 Universal Die Set for .131″ – .140″ Triple Cables, Qty. 1
TSD3150 – TSK8000 Universal Die Set for .141″ – .150″ Triple Cables, Qty. 1
TSD3160 – TSK8000 Universal Die Set for .151″ – .160″ Triple Cables, Qty. 1
TSD3170 – TSK8000 Universal Die Set for .161″ – .170″ Triple Cables, Qty. 1
TSD3180 – TSK8000 Universal Die Set for .171″ – .180″ Triple Cables, Qty. 1
TSK8000 – Tool Kit Assembly, Qty. 1
TS8000 CIC Cable Diameter Gauge Card
In an organized, foam lined case
