Tilton’s 5.5″ OT-III heavy duty metallic racing clutches offer the low moment-of-inertia, high torque capacity and reliability necessary for the most demanding racing applications.

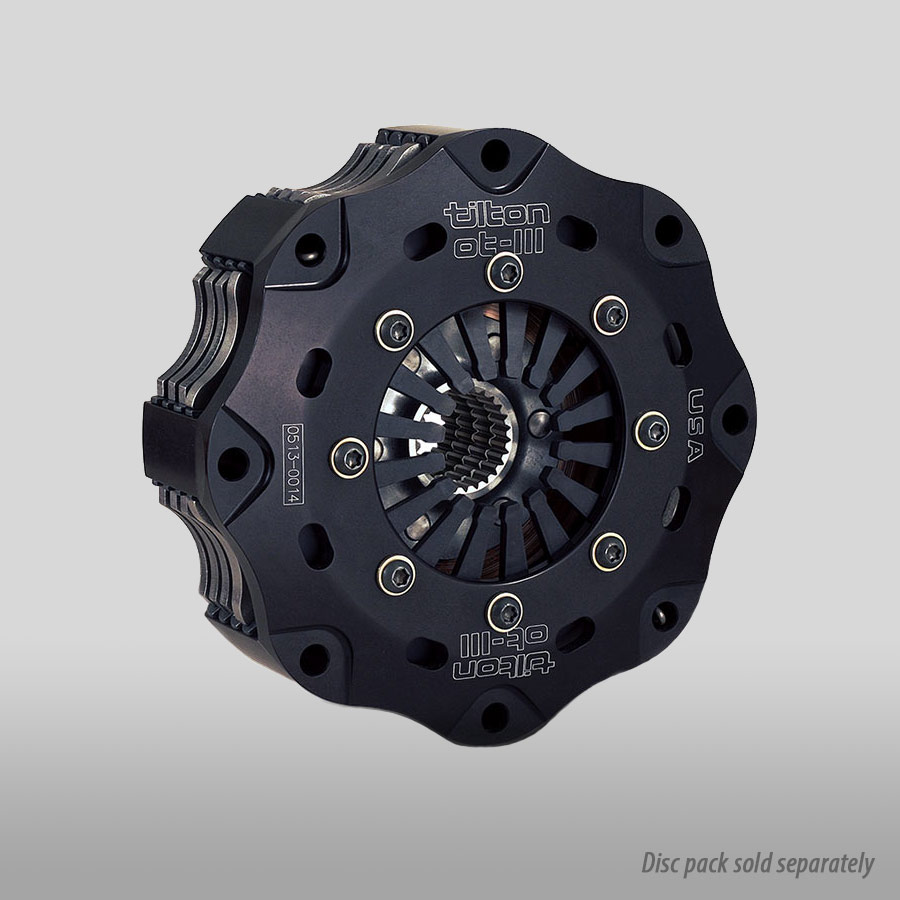

Tilton Engineering 5.5″ OT-III Heavy Duty Metallic Racing Clutches
Price range: $1,025.00 through $1,240.00
Description
Tilton’s 5.5″ OT-III heavy duty metallic racing clutches offer the low moment-of-inertia, high torque capacity and reliability necessary for the most demanding racing applications. These features have made metallic clutches the most common clutch type used in road racing and circle track racing. The included high ratio pressure plate features short release travel for quick engagement and shifting as well as a flat clamp load curve for longer wear range. Metallic clutches are not recommended for street use.
5.5″ OT-III heavy duty metallic racing clutch applications:
- Road Racing
- Endurance Racing
- Short Course Off Road
Open, one-piece clutch cover design provides lower operating temperature, high strength and minimal deflection for quick shifting.
Chrome vanadium diaphragm springs and an engineered pressure plate geometry provide a high clamp load-to-wear ratio, low release load and quick shifting.
High-strength steel is used in both the pressure plates and the floater plates.
.104″-thick friction disc withstands elevated temperatures while providing low inertia and excellent wear resistance.
Hardened steel thrust buttons provide smooth and durable surface for pressure and floater plates.
Every Tilton OT clutch is dynamically balanced to ensure the highest level of performance.
Each OT clutch is individually inspected for proper assembly and balance, and initialed by the quality personnel as confirmation.

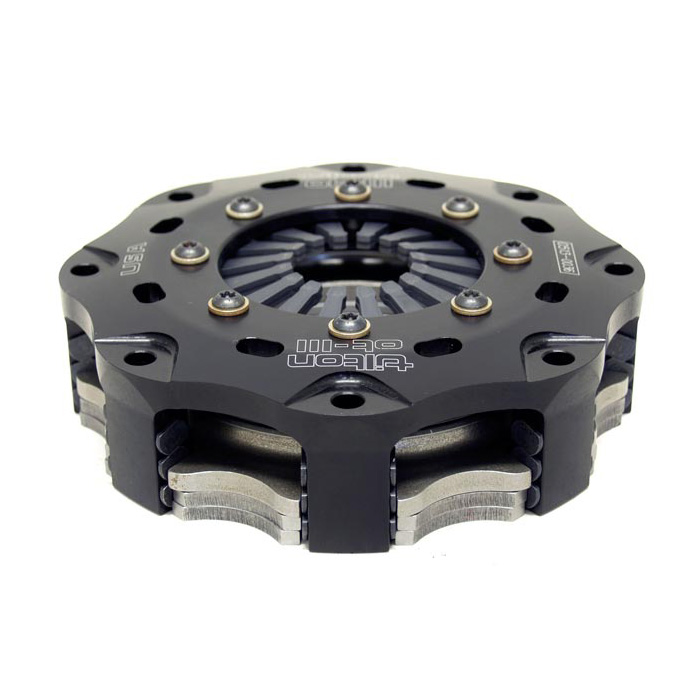

3-Plate Specifications:
Weight**: 7.7 lbs/3.5 kg
M.O.I.**: 42.4 lb-in2/.0125 kg-m2
|
SPRING COLOR |
TORQUE CAPACITY |
RELEASE LOAD – NEW* |
RELEASE LOAD – |
|---|---|---|---|
|
Orange |
600/816 |
510/225 |
650/286 |
|
Gray |
750/1020 |
685/302 |
880/388 |

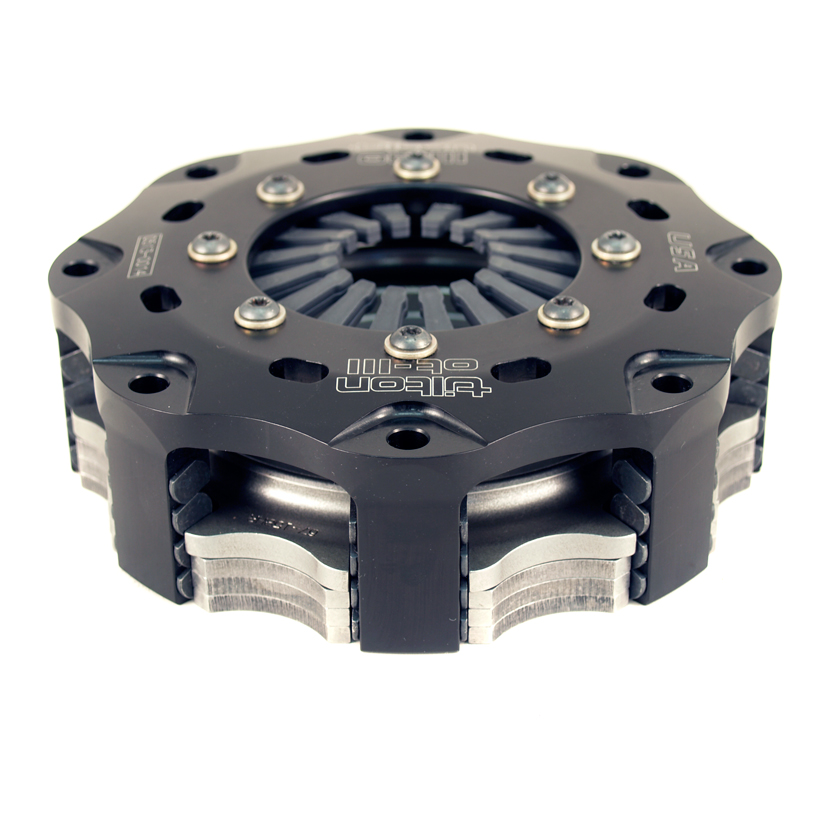

4-Plate Specifications:
Weight**: 9.3 lbs/4.2 kg
M.O.I.**: 52.7 lb-in2/.0154 kg-m2
|
SPRING COLOR |
TORQUE CAPACITY |
RELEASE LOAD – NEW* |
RELEASE LOAD – |
|---|---|---|---|
|
Orange |
800/1088 |
510/225 |
650/286 |
|
Gray |
1000/1360 |
685/302 |
880/388 |
All 5.5″ metallic clutches feature a high-ratio pressure plate.
* Values listed are typical for release bearings with the recommended 38mm contact diameter. Larger contact diameters will increase release load.
** Weight and M.O.I. include pressure plate, carbon floater plates, carbon discs and steel hub, and may vary based on your particular spline.
* Values listed are typical for release bearings with the recommended 38mm contact diameter. Larger contact diameters will increase release load.
** Weight and M.O.I. include pressure plate, carbon floater plates, carbon discs and steel hub, and may vary based on your particular spline.
Tilton offers two different styles of every clutch configuration: one designed to be compatible with a step-type flywheel, and another for pot-type (“no-step”) flywheels. Step flywheels have a .100″ step for contact with the friction material of the clutch, so clutches made for this application will have a .100″ height difference between the bottom friction disc and the end of the clutch cover legs (the mounting points). Pot flywheels don’t have this step, so the friction disc and clutch cover legs will be flush on clutches designed for them.
Tilton uses a color system for indicating the angle and weight of the clutch spring, which has an effect on release load and torque capacity for the clutch. The exact values for each color vary depending on the type of clutch, so be sure to check the Specs tab to find exact measurements
