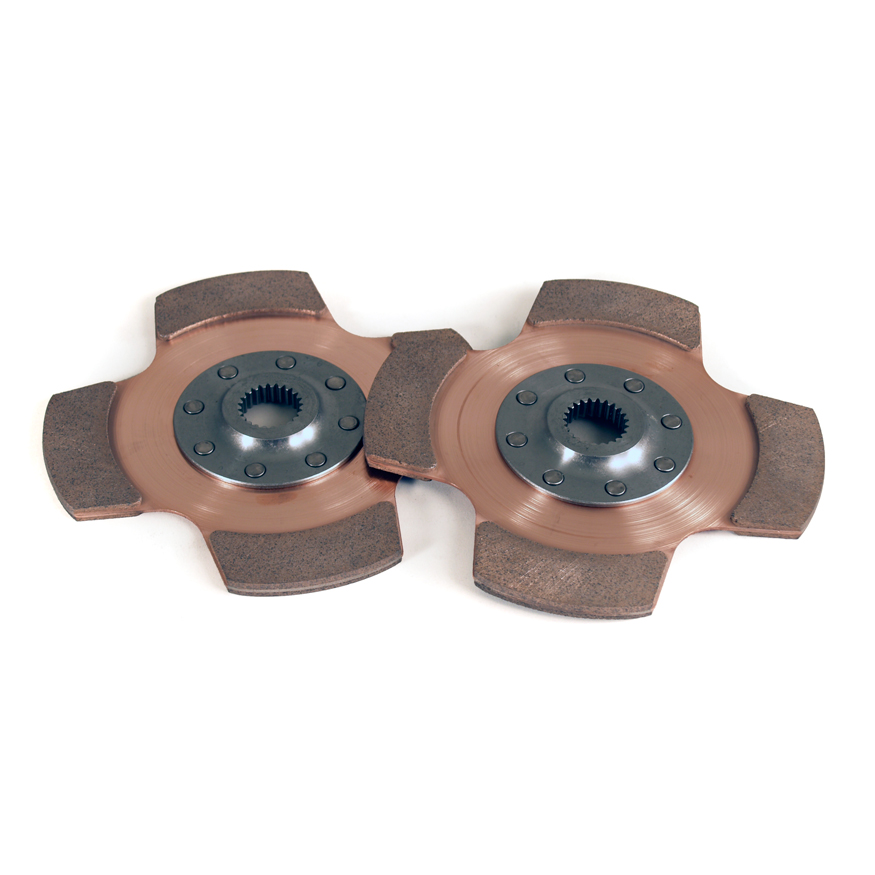

Tilton 7.25″ 2-plate cerametallic clutch disc packs feature 4-paddle discs that utilize a unique blend of ceramic and metallic materials. Because the cerametallic discs are thicker than sintered metallic discs, they provide higher heat capacity through their increased mass.
Tilton Engineering 7.25″ 2-Plate Cerametallic Clutch Disc Packs
Price range: $212.50 through $380.00
Description
Tilton 7.25″ 2-plate cerametallic clutch disc packs feature 4-paddle discs that utilize a unique blend of ceramic and metallic materials. Because the cerametallic discs are thicker than sintered metallic discs, they provide higher heat capacity through their increased mass.

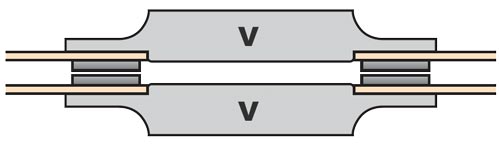

V-Style hub = 0.375″ thick
All disc packs are 8-rivet, “back-to-back” configuration.
| # OF TEETH | INPUT SHAFT DIAMETER | PART NUMBER |
|---|---|---|
| 10 | 1 1/16″ | 64185-8-VV-05 |
| 10 | 1 1/8″ | 64185-8-VV-06 |
| 10 | 1 3/8″ | 64185-8-VV-08 |
| 10 | 29mm | 64185-8-VV-10 |
| 14 | 25mm | 64185-8-VV-12 |
| 14 | 30.8mm | 64185-8-VV-14 |
| 18 | 1 3/16″ | 64185-8-VV-19 |
| 20 | 7/8″ | 64185-8-VV-25 |
| 21 | 29/32″ | 64185-8-VV-26 |
| 21 | 29mm | 64185-8-VV-28 |
| 22 | 1″ | 64185-8-VV-29 |
| 23 | 1″ | 64185-8-VV-30 |
| 24 | 1″ | 64185-8-VV-33 (early Nissan) |
| 26 | 22mm | 64185-8-VV-35 |
| 26 | 1 5/32″ | 64185-8-VV-36 |
| 24 | 26mm | 64185-8-VV-38 |
| 23 | 24mm | 64185-8-VV-41 |
| 24 | 15/16″ | 64185-8-VV-47 |
| 29 | 1 1/4″ | 64185-8-VV-48 |
| 10 | 35mm | 64185-8-VV-52 |
| 26 | 35mm | 64185-8-VV-55 |
| 24 | 1″ | 64185-8-VV-57 (late Nissan) |
