Tilton cerametallic disc packs feature 4-paddle discs that utilize a unique blend of ceramic and metallic materials. Because the cerametallic discs are thicker than sintered metallic discs, they provide higher heat capacity through their increased mass.
Tilton Engineering 7.25″ 1-Plate Cerametallic Clutch Disc Packs
Price range: $106.25 through $148.75
Description
Tilton cerametallic disc packs feature 4-paddle discs that utilize a unique blend of ceramic and metallic materials. Because the cerametallic discs are thicker than sintered metallic discs, they provide higher heat capacity through their increased mass.

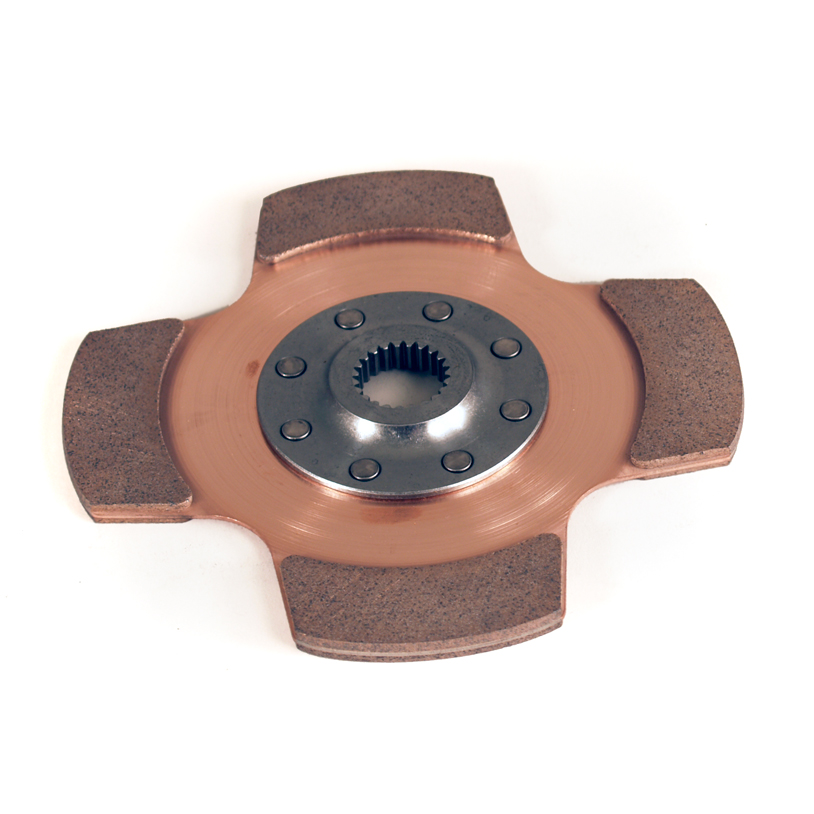

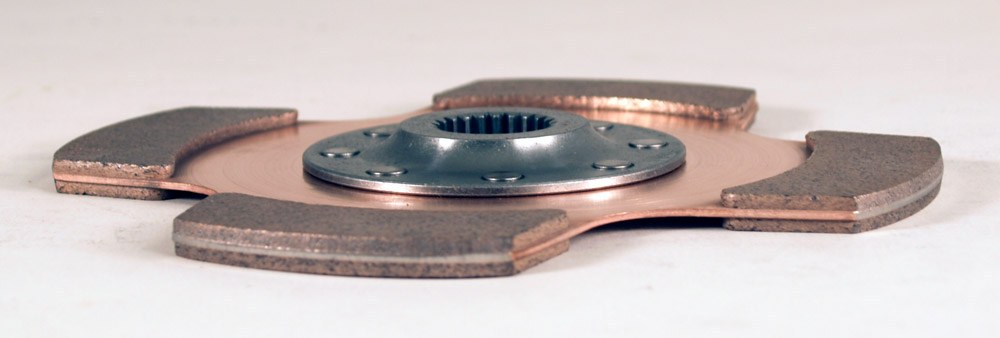

V-Style hub = 0.375″ thick

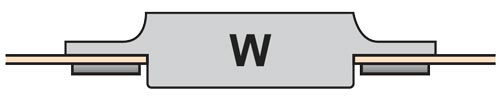

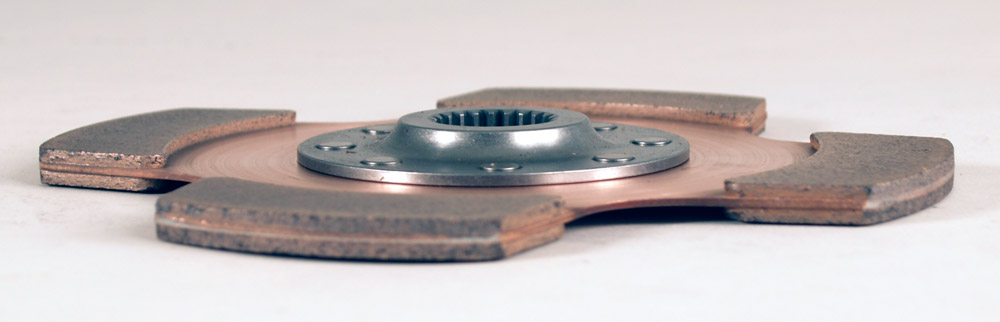

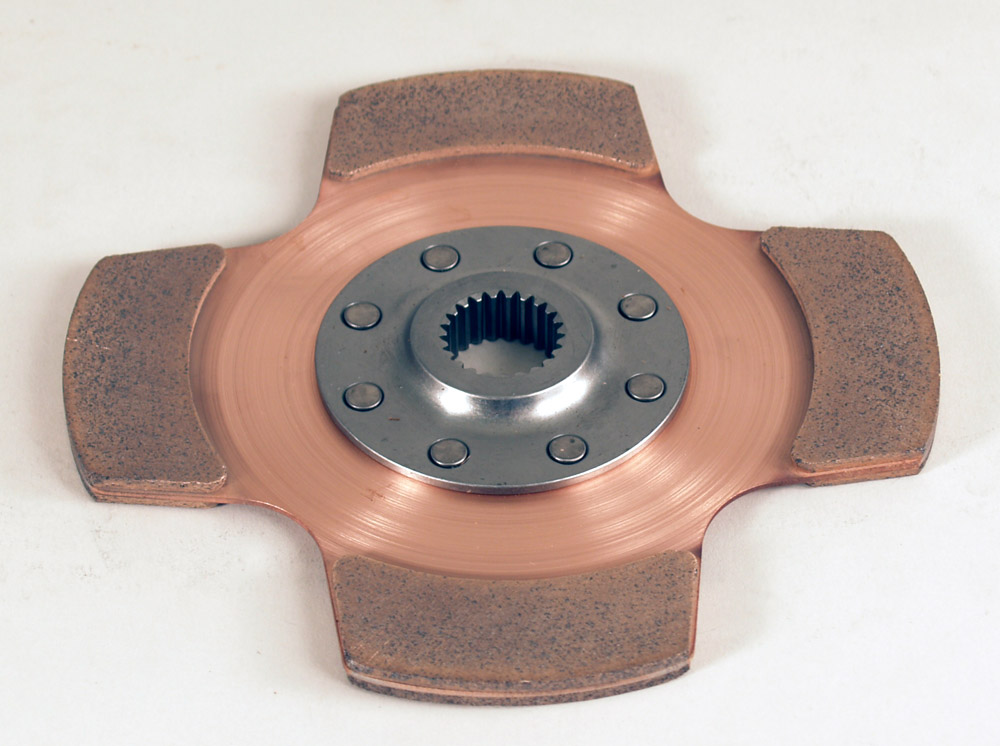

W-Style hub = 0.550″ thick
P/N 64185-8-V-30 (1″ x 23 teeth) is also available with a hardened spline (P/N 64185-8-V-30H), providing greater wear resistance and longer life.
| # OF TEETH | INPUT SHAFT DIAMETER | PART NUMBER |
|---|---|---|
| 10 | 7/8″ | 64185-8-V-03 |
| 10 | 1″ | 64185-8-V-04 |
| 10 | 1 1/16″ | 64185-8-V-05 |
| 10 | 1 1/8″ | 64185-8-V-06 |
| 10 | 29mm | 64185-8-V-10 |
| 10 | 35mm | 64185-8-V-52 |
| 14 | 25mm | 64185-8-V-12 |
| 14 | 30.8mm | 64185-8-V-14 |
| 14 | 25mm | 64185-8-W-12 |
| 18 | 20.4mm | 64185-8-W-17 |
| 20 | 7/8″ | 64185-8-V-25 |
| 20 | 7/8″ | 64185-8-W-25 |
| 21 | 24mm | 64185-8-V-27 |
| 21 | 29mm | 64185-8-V-28 |
| 21 | 24mm | 64185-8-W-27 |
| 22 | 1″ | 64185-8-V-29 |
| 23 | 1″ | 64185-8-V-30 |
| 23 | 1″ | 64185-8-V-30H* |
| 23 | 24mm | 64185-8-V-41 |
| 23 | 1″ | 64185-8-W-30 |
| 24 | 13/16″ | 64185-8-V-32 |
| 24 | 1″ | 64185-8-V-33 (early Nissan) |
| 24 | 26mm | 64185-8-V-38 |
| 24 | 15/16″ | 64185-8-V-47 |
| 24 | 1″ | 64185-8-V-57 (late Nissan) |
| 24 | 13/16″ | 64185-8-W-32 |
| 26 | 1 5/32″ | 64185-8-V-36 |
| 28 | 7/8″ | 64185-8-W-39 |
*”H” indicates a hardened spline, providing greater wear resistance and longer life.
Specs:
| Spline Size | 20.4mm, 26mm, 13/16″, 7/8″, 15/16″, 1″, 1 1/16″, 1 1/8″, 1 5/32″, 24mm, 25mm, 29mm, 30.8mm, 35mm |
|---|---|
| Number of Teeth | 10, 14, 18, 20, 21, 22, 23, 24, 26, 28 |
| Hub Thickness | 0.375″, 0.550″ |
