Tilton Clutch Friction Discs are renowned for their durability, torque capacity and heat capacity.

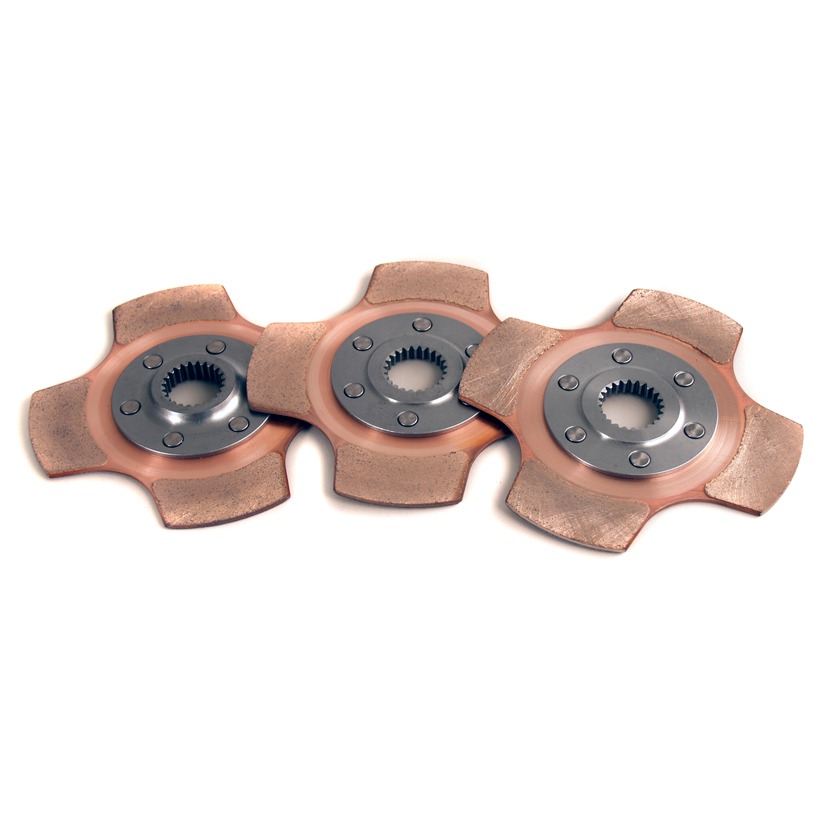

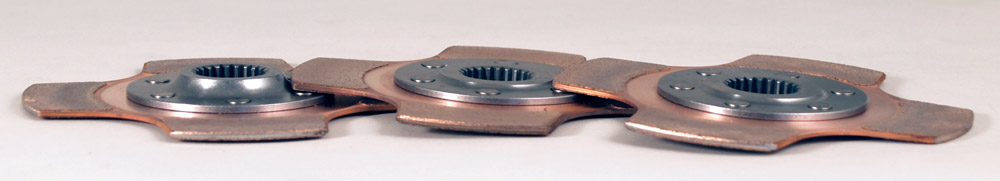

Tilton Engineering 5.5″ Paddle 3-Plate Metallic Clutch Disc Packs
Price range: $385.00 through $400.00
Description
Tilton Clutch Friction Discs are renowned for their durability, torque capacity and heat capacity. These discs are suited, in name as well as function, for race applications due to their quick engagement characteristics.

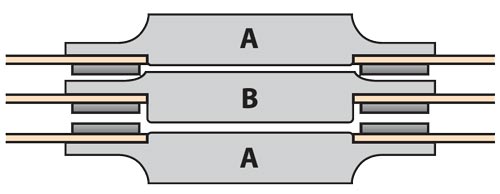

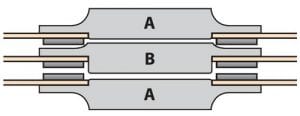

A-style hub = 0.375″ thick
B-style hub = 0.375″ thick

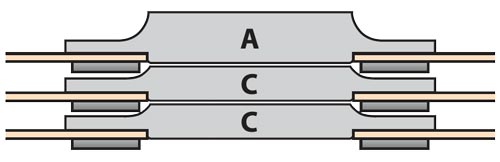

A-style hub = 0.375″ thick
C-style hub = 0.250″ thick
All disc packs feature 6-rivet hubs.
| # OF TEETH | INPUT SHAFT DIAMETER | HUB TYPE | PART NUMBER |
|---|---|---|---|
| 10 | 29mm | Back-to-Back | 64140-3-ABA-10 |
| 23 | 1″ | Back-to-Back | 64140-3-ABA-30 |
| 23 | 1″ | Stacked | 64140-3-ACC-30 |
| 23 | 24mm | Stacked | 64140-3-ACC-41 |
| 24 | 26mm | Back-to-Back | 64140-3-ABA-38 |
| 24 | 13/16″ | Stacked | 64140-3-ACC-32 |
| 26 | 1 5/32″ | Back-to-Back | 64140-3-ABA-36 |
| 26 | 1 5/32″ | Stacked | 64140-3-ACC-36 |
Specs:
| Spline Size | 26mm, 13/16″, 1″, 1 5/32″, 24mm, 29mm |
|---|---|
| Number of Teeth | 10, 23, 24, 26 |
| Hub Configuration | Back-to-Back, Stacked |
