Tilton’s 5.5″ 3-Plate metallic clutch disc packs are renowned for their durability, torque capacity and heat capacity.

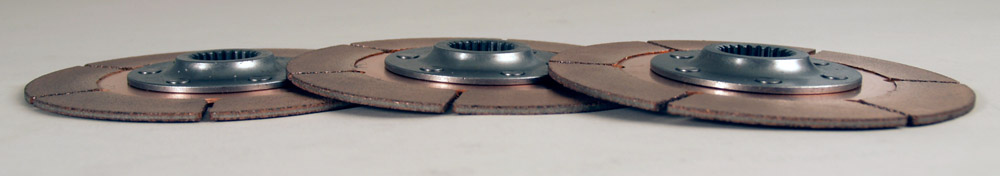

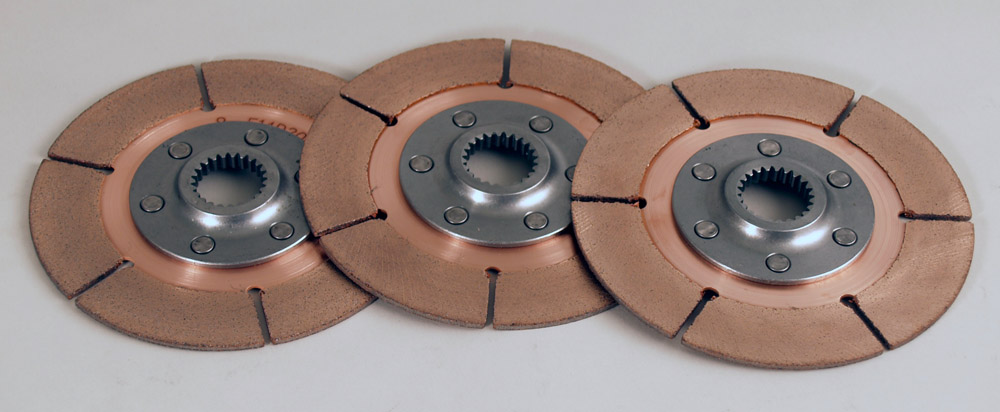

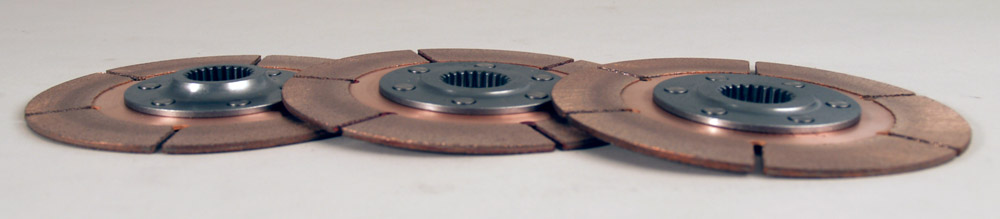

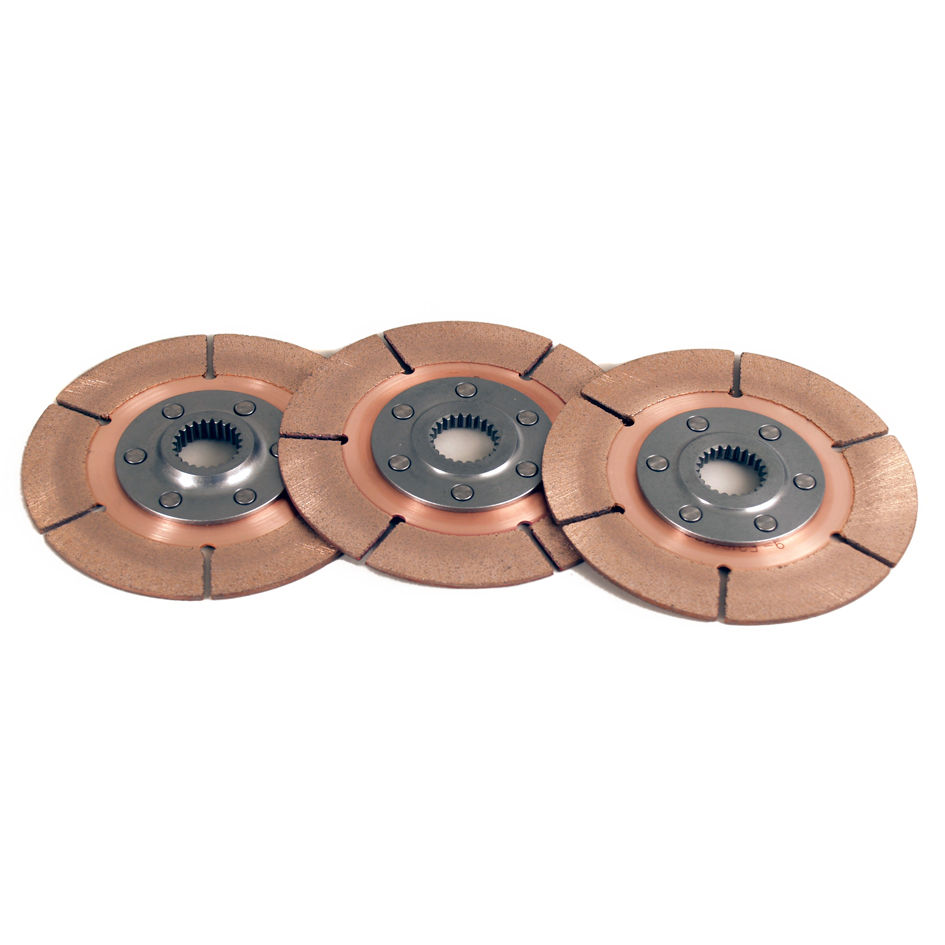

Tilton Engineering 5.5″ 3-Plate Metallic Clutch Disc Packs
Price range: $255.00 through $415.00
Description
Tilton’s 5.5″ 3-Plate metallic clutch disc packs are renowned for their durability, torque capacity and heat capacity. These discs are suited, in name as well as function, for race applications due to their quick engagement characteristics.

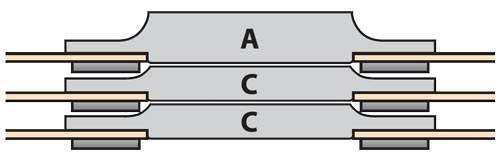

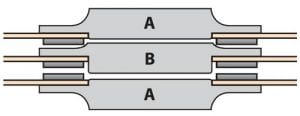

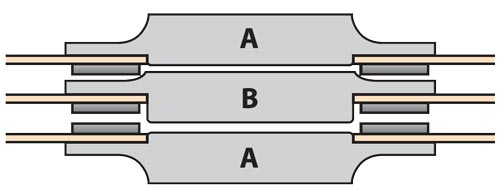

A-Style hub = 0.375″ thick
B-Style hub = 0.375″ thick
A-Style hub = 0.375″ thick
C-Style hub = 0.250″ thick
All disc packs feature 6-rivet hubs.
| # OF TEETH | INPUT SHAFT DIAMETER | HUB TYPE | PART NUMBER |
|---|---|---|---|
| 10 | 1″ | Back-to-Back | 64140-9-ABA-04 |
| 10 | 1 1/8″ | Back-to-Back | 64140-9-ABA-06 |
| 10 | 1 1/4″ | Back-to-Back | 64140-9-ABA-07 |
| 10 | 1 3/8″ | Back-to-Back | 64140-9-ABA-08 |
| 10 | 29mm | Back-to-Back | 64140-9-ABA-10 |
| 10 | 35mm | Back-to-Back | 64140-9-ABA-52 |
| 10 | 1 1/16″ | Stacked | 64140-9-ACC-05 |
| 10 | 1 1/8″ | Stacked | 64140-9-ACC-06 |
| 10 | 1 3/8″ | Stacked | 64140-9-ACC-08 |
| 10 | 29mm | Stacked | 64140-9-ACC-10 |
| 14 | 25mm | Back-to-Back | 64140-9-ABA-12 |
| 14 | 30.8mm | Back-to-Back | 64140-9-ABA-14 |
| 20 | 7/8″ | Stacked | 64140-9-ACC-25 |
| 21 | 29mm | Stacked | 64140-9-ACC-28 |
| 22 | 1″ | Stacked | 64140-9-ACC-29 |
| 23 | 1″ | Back-to-Back | 64140-9-ABA-31 |
| 23 | 1″ | Stacked | 64140-9-ACC-30 |
| 23 | 24mm | Stacked | 64140-9-ACC-41 |
| 24 | 1″ | Back-to-Back | 64140-9-ABA-33 |
| 26 | 1 5/32″ | Back-to-Back | 64140-9-ABA-36 |
| 26 | 1 5/32″ | Stacked | 64140-9-ACC-36 |
| 29 | 1 1/4″ | Back-to-Back | 64140-9-ABA-46 |
Did you land here after searching for Sonic Racing parts? Sorry for the complication; we’ve phased out the Sonic name in an effort to reduce brand confusion. If you ended up here after searching for a Sonic part number, rest assured that the product shown on this page should relate exactly to the part you were looking for, and should be 100% compatible with the Tilton or Sonic parts you may already own.
