Tilton’s 5.5″ 2-plate metallic clutch disc packs are renowned for their durability, torque capacity and heat capacity.

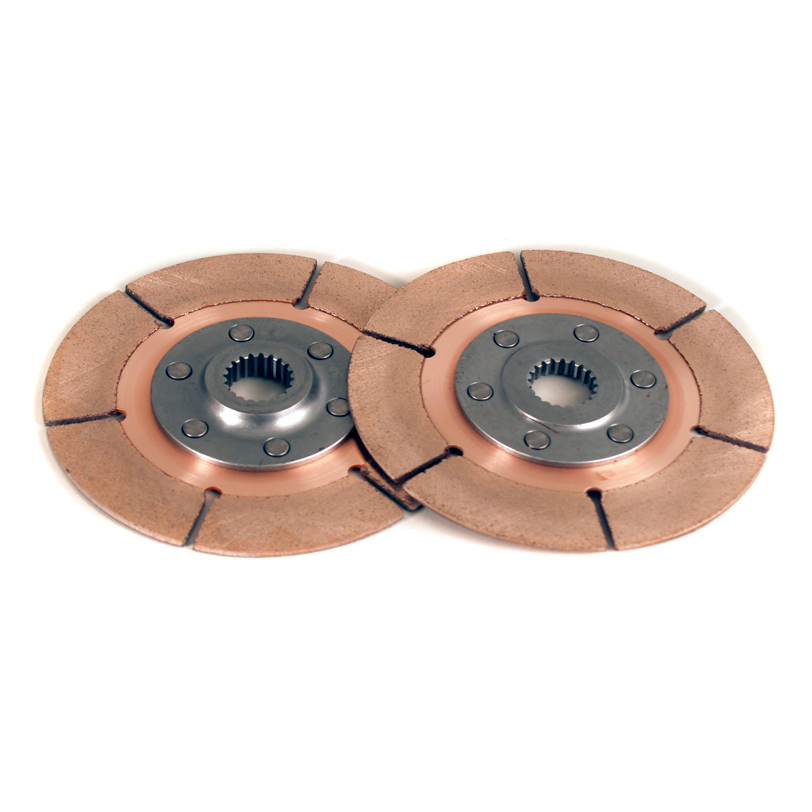

Tilton Engineering 5.5″ 2-Plate Metallic Clutch Disc Packs
Price range: $170.00 through $255.00
Description
Tilton’s 5.5″ 2-plate metallic clutch disc packs are renowned for their durability, torque capacity and heat capacity. These discs are designed for race applications and feature quick engagement characteristics.

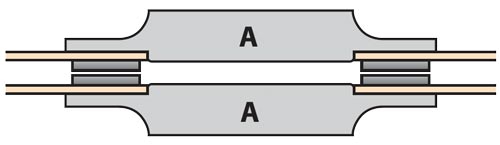

A-Style hub = 0.375″ thick
A-Style hub = 0.375″ thick

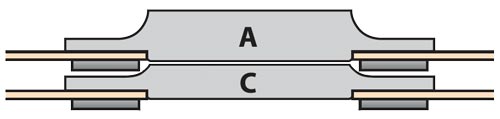

C-Style hub = 0.250″ thick
All disc packs feature 6-rivet hubs.
| # OF TEETH | INPUT SHAFT DIAMETER | HUB TYPE | PART NUMBER |
|---|---|---|---|
| 10 | 1″ | Back-to-Back | 64140-9-AA-04 |
| 10 | 1 1/8″ | Back-to-Back | 64140-9-AA-06 |
| 10 | 1 3/8″ | Back-to-Back | 64140-9-AA-08 |
| 10 | 29mm | Back-to-Back | 64140-9-AA-10 |
| 10 | 35mm | Back-to-Back | 64140-9-AA-52 |
| 10 | 1″ | Stacked | 64140-9-AC-04 |
| 10 | 1 1/16″ | Stacked | 64140-9-AC-05 |
| 10 | 29mm | Stacked | 64140-9-AC-10 |
| 17 | 3/4″ | Back-to-Back | 64140-9-AA-15 |
| 18 | 21mm | Back-to-Back | 64140-9-AA-17 |
| 18 | 1 3/16″ | Back-to-Back | 64140-9-AA-19 |
| 19 | 13/16″ | Back-to-Back | 64140-9-AA-20 |
| 20 | 7/8″ | Back-to-Back | 64140-9-AA-25 |
| 20 | 7/8″ | Stacked | 64140-9-AC-25 |
| 21 | 29/32″ | Stacked | 64140-9-AC-26 |
| 22 | 1″ | Back-to-Back | 64140-9-AA-29 |
| 22 | 1″ | Stacked | 64140-9-AC-29 |
| 22 | 15/16″ | Back-to-Back | 64140-9-AA-42 |
| 22 | 29.4mm | Back-to-Back | 64140-9-AA-51 |
| 23 | 1″ | Back-to-Back | 64140-9-AA-30 |
| 23 | 1″ | Stacked | 64140-9-AC-30 |
| 24 | 13/16″ | Back-to-Back | 64140-9-AA-32 |
| 24 | 1″ | Back-to-Back | 64140-9-AA-33 |
| 24 | 1 1/32″ | Back-to-Back | 64140-9-AA-38 |
| 24 | 13/16″ | Stacked | 64140-9-AC-32 |
| 24 | 1″ | Stacked | 64140-9-AC-33 |
| 24 | 17.4mm | Stacked | 64140-9-AC-44 |
| 26 | 1 5/32″ | Back-to-Back | 64140-9-AA-36 |
| 26 | 35mm | Back-to-Back | 64140-9-AA-55 |
| 26 | 1 5/32″ | Stacked | 64140-9-AC-36 |
| 28 | 7/8″ | Back-to-Back | 64140-9-AA-39 |
| 28 | 7/8″ | Stacked | 64140-9-AC-39 |
| 29 | 1 1/4″ | Back-to-Back | 64140-9-AA-46 |
