Tilton’s 5.5″ 1-plate metallic clutch disc is renowned for its durability, torque capacity and heat capacity.
Tilton Engineering 5.5″ 1-Plate Metallic Clutch Disc Packs
Price range: $130.00 through $190.00
Description
Tilton’s 5.5″ 1-plate metallic clutch disc is renowned for its durability, torque capacity and heat capacity. These discs are designed for race applications and feature quick engagement characteristics.

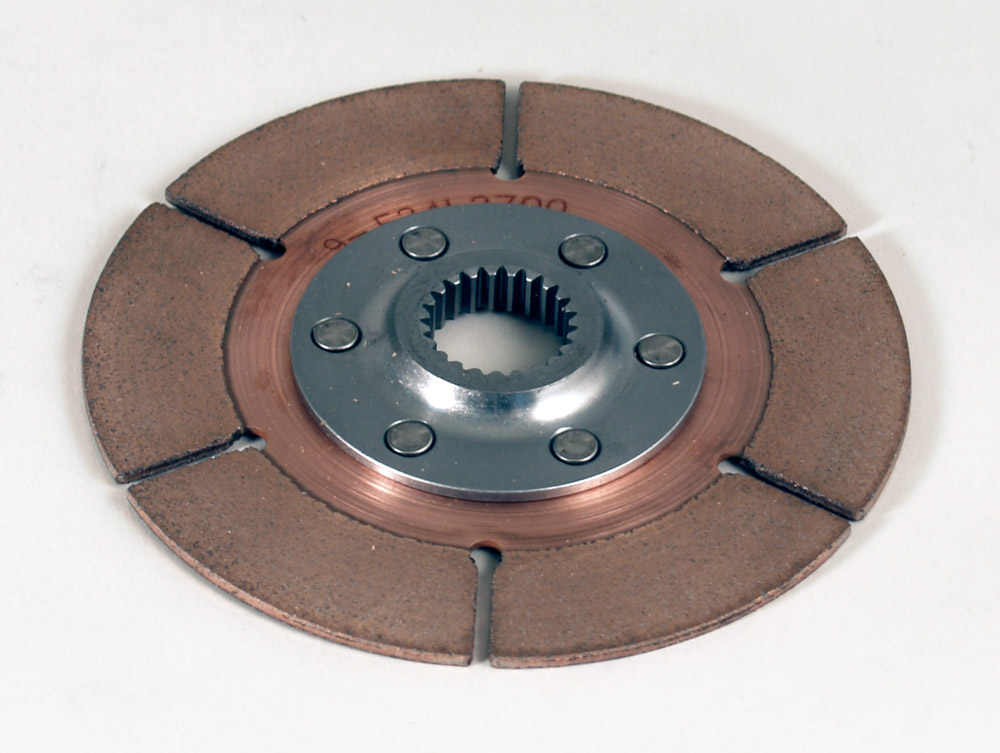

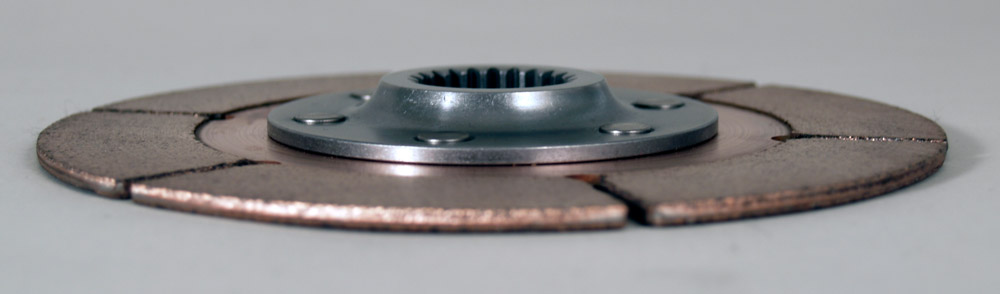

A-Style hub = 0.375″ thick

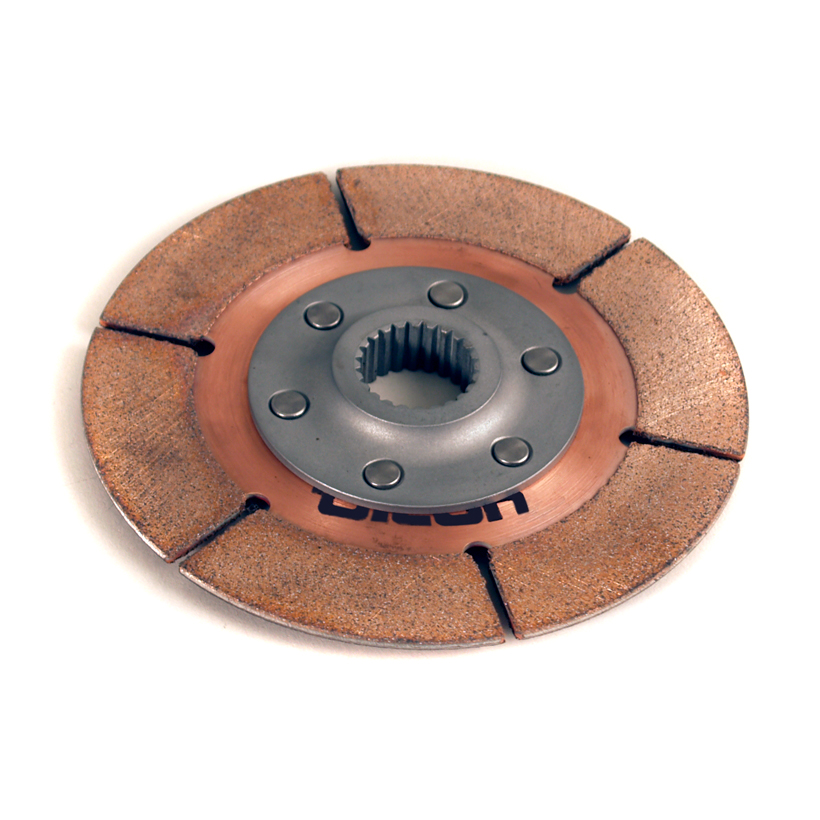

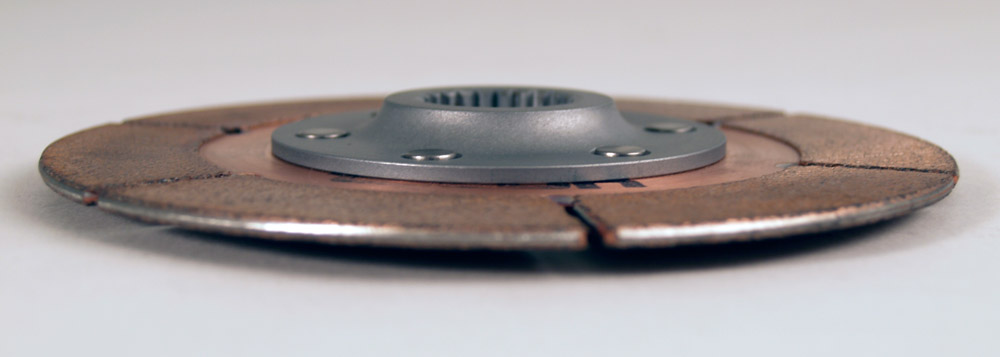

F-Style hub = 0.550″ thick
All discs feature 6-rivet hubs.
| # OF TEETH | INPUT SHAFT DIAMETER | PART NUMBER |
|---|---|---|
| 10 | 7/8″ | 64140-9-A-03 |
| 10 | 1 1/16″ | 64140-9-A-05 |
| 10 | 1 1/8″ | 64140-9-A-06 |
| 10 | 1 3/8″ | 64140-9-A-08 |
| 10 | 29mm | 64140-9-A-10 |
| 10 | 7/8″ | 64140-9-F-03 |
| 10 | 1″ | 64140-9-F-04 |
| 10 | 1 1/8″ | 64140-9-F-06 |
| 10 | 29mm | 64140-9-F-10 |
| 17 | 3/4″ | 64140-9-A-15 |
| 18 | 21mm | 64140-9-A-17 |
| 18 | 13/16″ | 64140-9-A-18 |
| 18 | 21mm | 64140-9-F-17 |
| 20 | 7/8″ | 64140-9-A-25 |
| 20 | 7/8″ | 64140-9-F-25 |
| 21 | 29/32″ | 64140-9-A-26 |
| 21 | 24mm | 64140-9-A-27 |
| 21 | 29mm | 64140-9-A-28 |
| 21 | 24mm | 64140-9-F-27 |
| 22 | 1″ | 64140-9-A-29 |
| 22 | 1″ | 64140-9-F-29 |
| 23 | 1″ | 64140-9-A-30 |
| 23 | 1″ | 64140-9-A-30H* |
| 23 | 1″ | 64140-9-F-30 |
| 24 | 13/16″ | 64140-9-A-32 |
| 24 | 1″ | 64140-9-A-33 |
| 24 | 26mm | 64140-9-A-38 |
| 24 | 13/16″ | 64140-9-F-32 |
| 24 | 1″ | 64140-9-F-33 |
| 26 | 1 5/32″ | 64140-9-A-36 |
| 26 | 1 5/32″ | 64140-9-F-36 |
Specs:
| Number of Teeth | 10, 17, 18, 20, 21, 22, 23, 24, 26 |
|---|---|
| Spline Size | 26mm, 3/4″, 13/16″, 7/8″, 29/32″, 1″, 1 1/16″, 1 1/8″, 1 5/32″, 1 3/8″, 21mm, 24mm, 29mm |
| Hub Thickness | 0.375″, 0.550″ |
